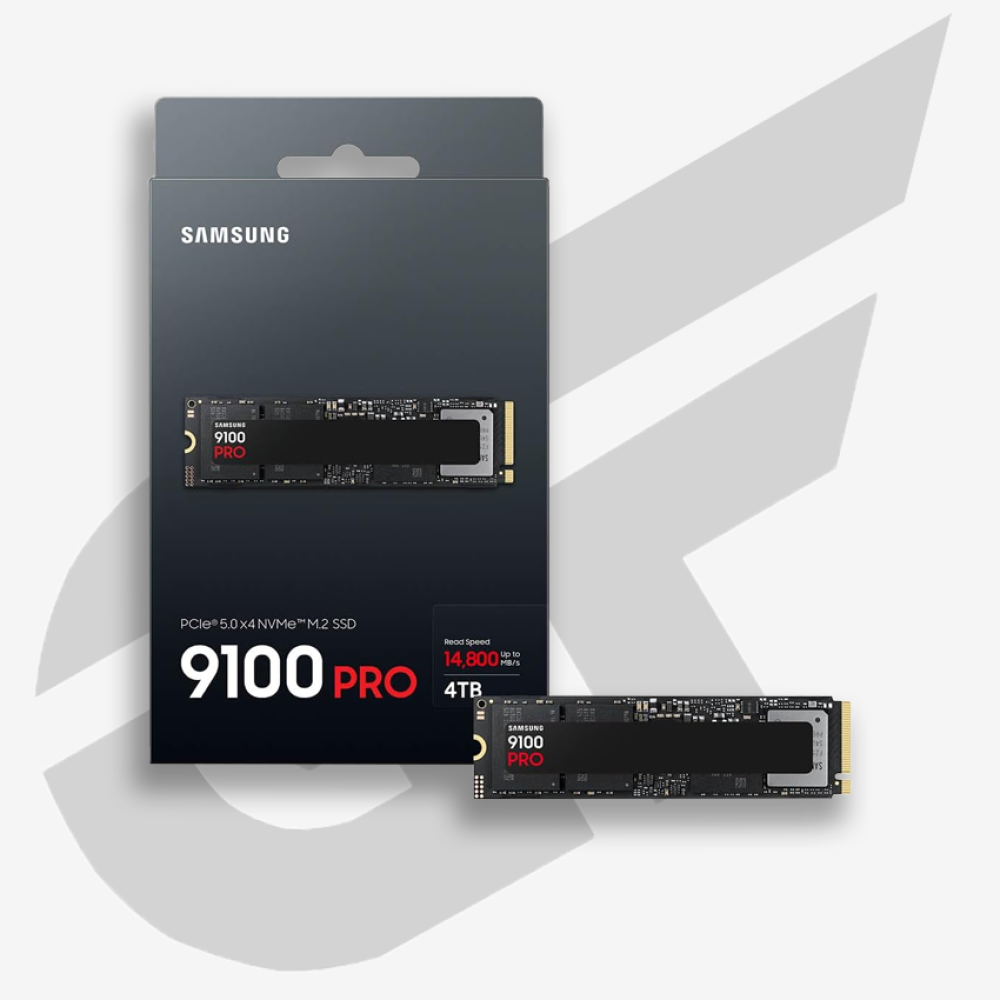

Samsung 9100 Pro 4tb Gen5 14700mb/s

Samsung 9100 Pro 4tb Gen5 14700mb/s:

Model Code (Capacity)¹⁾

• MZ-VAP1T0BW (1TB)
• MZ-VAP2T0BW (2TB)
• MZ-VAP4T0BW (4TB)
• MZ-VAP8T0BW (8TB)

General Feature

Application

• Client PCs, PlayStation®5

FORM FACTOR

• M.2 (2280)

INTERFACE

• PCIe® 5.0 x4, NVMe™ 2.0

DIMENSION (WxHxD)

• 1TB/2TB/4TB : 80.15 x 22.15 x 2.38 mm
• 8TB : 80.15 x 22.15 x 3.88 mm

WEIGHT

• 1TB/2TB/4TB : Max 9.0g Weight
• 8TB : Max 9.5g Weight

STORAGE MEMORY

• Samsung V-NAND TLC

CONTROLLER

• Samsung in-house Controller

CACHE MEMORY

• Samsung 1GB Low Power DDR4X SDRAM (1TB)
• Samsung 2GB Low Power DDR4X SDRAM (2TB)
• Samsung 4GB Low Power DDR4X SDRAM (4TB)
• Samsung 8GB Low Power DDR4X SDRAM (8TB)

Special Feature

TRIM Support

• Supported

S.M.A.R.T Support

• Supported

GC (GARBAGE COLLECTION)

• Auto Garbage Collection Algorithm

ENCRYPTION SUPPORT

• AES 256-bit Encryption (Class 0) TCG/Opal
• IEEE1667 (Encrypted drive)

WWN SUPPORT

• Not supported

DEVICE SLEEP MODE SUPPORT

• Yes

Performance²⁾

SEQUENTIAL READ

• 1TB: Up to 14,700 MB/s
• 2TB: Up to 14,700 MB/s
• 4TB: Up to 14,800 MB/s
• 8TB: Up to 14,800 MB/s (TBD)

SEQUENTIAL WRITE

• 1TB: Up to 13,300 MB/s
• 2TB: Up to 13,400 MB/s
• 4TB: Up to 13,400 MB/s
• 8TB: Up to 13,400 MB/s (TBD)

RANDOM READ (4KB, QD32)

• 1TB: Up to 1,850,000 IOPS
• 2TB: Up to 1,850,000 IOPS
• 4TB: Up to 2,200,000 IOPS
• 8TB: Up to 2,200,000 IOPS (TBD)

RANDOM WRITE (4KB, QD32)

• 1TB: Up to 2,600,000 IOPS
• 2TB: Up to 2,600,000 IOPS
• 4TB: Up to 2,600,000 IOPS
• 8TB: Up to 2,600,000 IOPS (TBD)

Environment

AVERAGE POWER CONSUMPTION

(System Level)³⁾

• 1TB: Average 7.6 W Maximum 7.2 W (Burst mode)
• 2TB: Average 8.1 W Maximum 7.9 W (Burst mode)
• 4TB: Average 9 W Maximum 8.2 W (Burst mode)

POWER CONSUMPTION (IDLE)³⁾

• 1TB: Max. 4 mW
• 2TB: Max. 4.8 mW
• 4TB: Max. 6.5 mW

POWER CONSUMPTION (DEVICE SLEEP)

• 1TB: Max. 3.3 mW
• 2TB: Max. 4 mW
• 4TB: Max. 5.7 mW

ALLOWABLE VOLTAGE

• 3.3 V ± 5 % Allowable voltage

RELIABILITY (MTBF)

• 1.5 Million Hours Reliability (MTBF)

OPERATING TEMPERATURE

• 0 - 70 ℃ Operating Temperature

Shock

• 1,500 G & 0.5 ms (Half sine)

Accessories

INSTALLATION KIT
